SEKO Forklift Scale Accuracy Demonstation https://www.youtube.com/watch?v=cOZ4K6NoDso Short video showing SEKO weigh
module accuracy

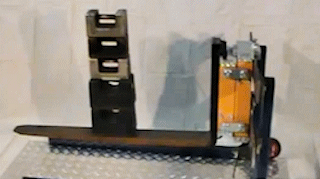

SEKO Forklift Scale Load-Center Accuracy Demonstration https://www.youtube.com/watch?v=U-oG8UZY3Ck
Short video showing SEKO weigh module accuracy stability with shifting load center |
|
 |

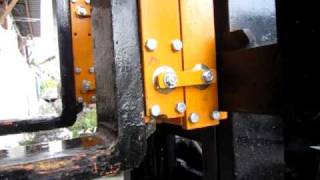

Weigh Module Video http://www.youtube.com/watch?v=oMJXgqpR2Ag SEKO
weighing modules installed
on forklift carriage with no modifications needed.
|
|
 |

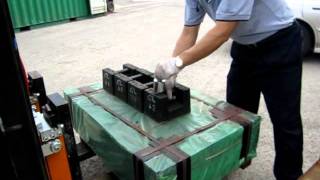

Remove 101 kg Accuracy Demonstration Video http://www.youtube.com/watch?v=iTGphjscDlo (MOV) |
|
 |

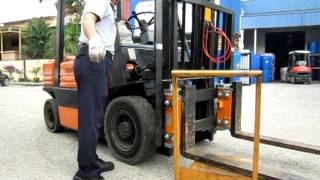

Quick and Easy Installation Video http://www.youtube.com/watch?v=SNgSs5ypZCM (MOV) SEKO Forklift weigh modules-
extremely
easy to install. Simple latch on design enables hook on to carriage and
no modification needed on the forklift.
|
|
 |

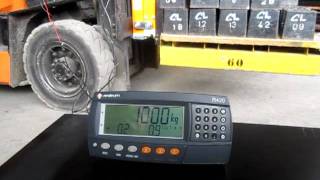

Tilt Compensation Video 1 http://www.youtube.com/watch?v=jq0KwrD0_Xc SEKO Forklift Scale C/W tilt
compensation devices- Rinstrum Indicator R420-K491 + Tilt Compensation
Module M4211 + Tilt Sensor M4904
The system can weigh accurately even though mast tilt between 8 degree backward to 8 degree forward. |
|
 |
Tilt Compensation Video 2 http://www.youtube.com/watch?v=1E8Sc0YDFNk (MOV) SEKO Forklift Scale C/W tilt
compensation devices
Rinstrum Indicator
R420-K491
The system can weigh accurately through mast tilt between 8 degree
backward to 8 degree forward.Tilt Compensation Module M4211 Tilt Sensor M4904 |
|
 |
Front to Rear Fork Loading Video http://www.youtube.com/watch?v=h-jx8AItnPY First weighing was done at the
forks
tip (1087kg). Second weighing done at fork rear, still showing 1087kg.
SEKO design shown no variation between loading at the fork tip and the
forks rear. The accuracy can be maintained permanently without
adjustment required. This forklift scale replaced the flexure with the
solid mechanical linkage.
|
|
 |
Weigh During Lift Video http://www.youtube.com/watch?v=tQSYA0nWKgM In house Accuracy Performance
Test:
1. Test of sensitivity by adding 1kg on the load of 2,000kg. 2. Test of accuracy in loading at different positions (forks tip and forks rear) 3. Test of weight accuracy when mast is tilted at different angle. |
|
 |

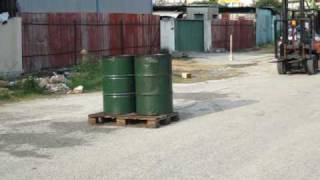

Crash Pallet of Water Barrels http://www.youtube.com/watch?v=jsjMISflsaM In house impact performance test
- The forklift had a head on impact with two steel drums filled with
water. The weighing scale remain accurate after the impact test.
|
|
 |

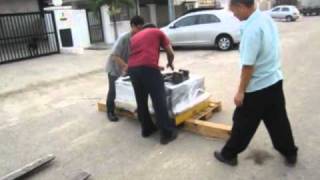

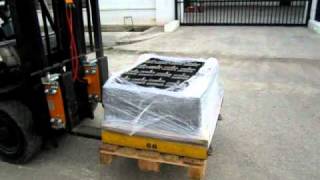

Crash Iron Weights Pallet http://www.youtube.com/watch?v=enBw8kfAAyw A forklift installed with SEKO
forklift scale.
1 The weight of the pallet, 1087
kg, can be read directly when it was lifted.
2 The pallet was unloaded and the forklift reversed to a distance of 40 metres. 3 A piece of wood was place in front of the pallet. 4 The forklift moved in at high speed and hit the wood to simulate a typical impact in normal weighing operation. 5 After the impact, the scale is still able to weigh the pallet accurately at 1087 kg. |
|
 |

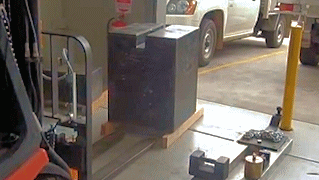

Atlas Weighing Systems - CompuLoad Scales using SEKO Forklift Scale weigh modules. http://www.youtube.com/watch?v=gjesLvgu9Uk Demonstration of the new Atlas
Weighing Forklift Load cell
|

 |
